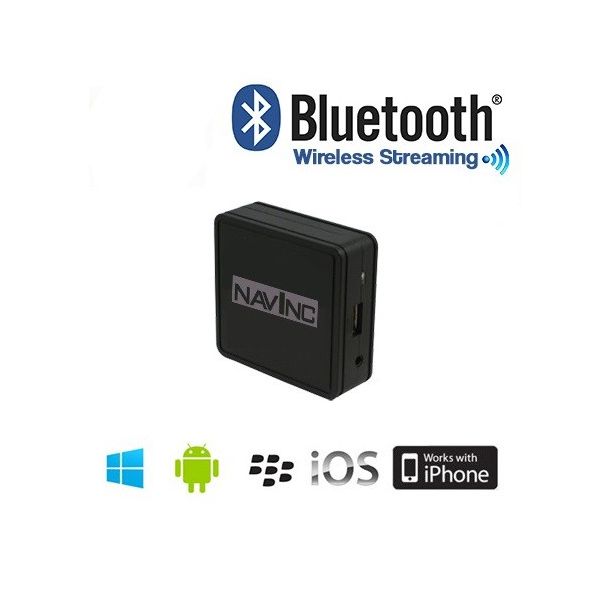

BT-VW-12P

VAG 12-pins Bluetooth streaming interface incl. Carkit function & AUX option

DESCRIPTION

General
With the NavInc Bluetooth interface it is possible to stream audio through every smartphone or tablet and to connect these devices with the original radio- and/or navigation system of Audi, Lanborghini, Seat, Skoda & Volkswagen. The interface makes use of the original CD changer connection port.

Beside the interface is equipped with a Bluetooth carkit function.

Features:

- Connect your Bluetooth device wireless with the original radio/navigation system in CD quality
- Charge function through USB port
- Compatible with Apple, Android, Windows & Blackberry smartphones
- Automatic Stop-Play function when switching from iPod to FM/CD/Tape
- Controls of connected device via original steering wheel controls (when available)
- Controls of connected device via original radio/navigation buttons
- Controls of connected device itself
- Extra audio input via jack 3.5mm (MP3 or notebook)
- Supports music streaming via A2DP Bluetooth protocol
- Supports controls via AVRCP protocol
- Plug & Play cable kit
- Bluetooth carkit function (with controls)
- Automatic Stop/Play function with incoming calls

BLUETOOTH STREAMING FEATURES

Wireless connection via Bluetooth for audio streaming via A2DP complete with charge function possibility (via USB port).

When the source supports AVRCP technology it is even possible to control the connected source via the original radio- and/or navigation system. It is also possible to control via the device itself.

Control options:

- Next track
- Previous track
- Volume +
- Volume –
- Fast forward

Controls also works with Apps like Spotify and Google Play.

AUX INPUT FEATURES

External AUX input via 3.5mm jack connection for connecting external audio sources such as:

- Notebook
- MP3 player
- DVD player
- Etc.

BLUETOOTH CARKIT FEATURES

The NavInc Bluetooth interface is equipped with a carkit function with control functions and automatic Stop/Play function with incoming calls.

Features:

- Carkit function with automatic Stop/Play function
- Automatic synchronization of phone with Bluetooth interface
- Optional microphone with echo- and noise reduction
- Automatic mute function (only in CD changer mode)
- Accept, deny and hang up conversations via radio buttons
- Audio of conversations via original sound system

USB CHARGING FEATURES

The NavInc Bluetooth interface has a USB port for charging connected devices.

NOTES

- Check tab ‘Compatibility’ to see if the interface is suitable for your radio- and/or navigation system
- Audio streaming and carkit function only works on interface level (CD changer level)
- Controls of connected source only possible when device supports AVRCP technology
- USB port on device is only for charge function
- ID3 tag (text) support is not possible

Compatibility

Not available

Extra Information

COMPATIBILITY

CAR

This kit is compatible with the following models:

Audi

A2 2000 - 2005
A3 2001 - 2012
A4 2004 - 2008
A6 2001 - 2004
A6 Allroad 2001 - 2006
A8 1999 - 2003

TT 2007 - 201>

Lamborghini

Gallardo 2003 - 201>

Gallarod 2006 - 201>

Skoda
Fabia 2004 - 2007
Octavia 2004 - 2009

Octavia 2009 - 201>
Roomster 2006 - 2010

Roomster 2010 - 201>
Superb 2004 - 2006

Superb 2006 - 2008

Superb 2008 - 201>

Superb Combi 2010 - 201>
Yeti 2009 - 201>

Volkswagen

Bora 2003 - 2008
Caddy 2004 - 2010
Caddy Combi / Maxi 2010 - 201>
Cross Polo
Crafter 2008 - 200>
Eos 2006 - 2011
Eos 2011 - 201>
Fox 2005 - 201>
Golf 5 2003-2008
Golf 6 2008 - 201>
Golf Plus 2003 - 2009
Golf Plus 2009 - 201>
Jetta 2005 - 2011
New Beetle 2004 - 201>
Jetta 2011 - 201>
Multivan 2003 - 2010
Multivan 2010 - 201>
Passat 2005 - 2010
Passat 2010 - 201>
Passat CC 2008 - 201>
Phaeton 2002 - 2010
Polo 2005 - 2009
Polo 2009 - 201>
Scirocco 2008 - 201>
Sharan 2003 - 2010
Sharan 2010 - 201>
Tiguan 2007 - 201>
Touran 2003 - 2006
Touran 2007 - 2010
Touran 2010 - 201>
Touareg 2002 - 2007
Touareg 2007 - 2010
Transporter T5 2003 - 2010
Transporter T6 2010 - 201>

Tested on the following radio- navigation systems:

Stream
Nexus
Cruise
RNS
MFD2
Rhapsody
Audience
BEAT
Dance
Melody
RNS2
Symphony
RCD200
RCD210
RCD300
RCD310
RCD310
RNS300
RNS310
RNS315
RCD500
RCD510
Amundsen

Testing: Radio Swing & Radio blues

SE 350

Audiosystem CD1

Audiostyems CD2

Audiosystem CD3

PN 1 (Monochroom)

PN3 (Multicolor)

Seat
Alhambra 2004 - 2010

Alhambra 2010 - 201>
Altea Freetrack 2007 - 2009

Altrea Freetrack 2009 - 201>

Altea 2004 - 2009

Altea 2009 - 201>
Cordoba 2004 - 2006

Cordoba 2006 - 2009

Exeo 2009 - 201>
Exeo ST 2009 - 201>
Ibiza 2004 - 2006

Ibiza 2006 - 2009

Ibiza 2008 - 201>
Ibiza SC 2009 - 201>
Leon 2005 - 2009
Toledo 2004 - 2009

*Only in combination with the following radio- navigation systems.

MFD2

Stream
Nexus
Cruise
RNS
MFD2
Rhapsody
Audience
BEAT
Dance
Melody
RNS2
Symphony
RCD200
RCD210
RCD300
RCD310
RCD310
RNS300
RNS310
RNS315
RCD500
RCD510
Amundsen

Testing: Radio Swing & Radio blues

Concert3
Symphony3
Chorus 3
RNS-E navigation
RNS low navigation

BNS 5.0 systemen

Remarks:

- Only for radio- and/or navigation systems with 12-pins changer connection

- Other models of radio- navigation systems we do not have (yet) test results

- When model type is mentioned, please also check your system at ‘Compatibility’ tab

- When you doubt about compatibility please contact NavInc

- Original CD changer will remain

- No text support

- Skipping folders is limited to amount of optical CDs the original radio can handle

Image of 12-pins CD changer on radio:
