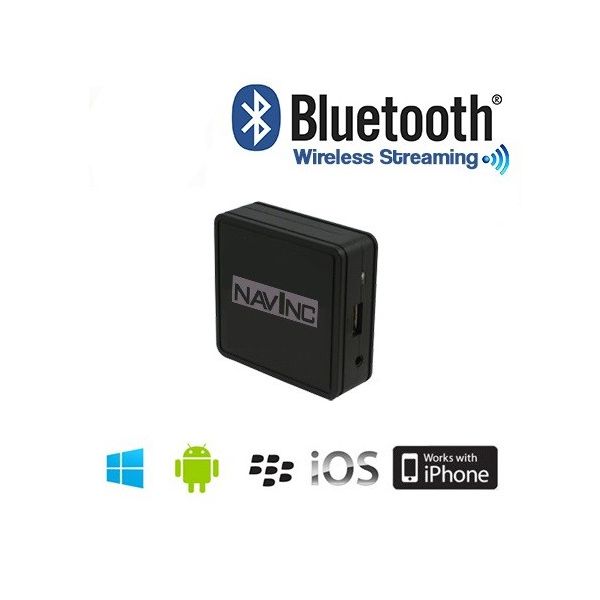

BT-TOY-B
Toyota 5+7 pins Bluetooth streaming interface incl. Carkit function & AUX option
DESCRIPTION
General
With the NavInc Bluetooth interface it is possible to stream audio through every smartphone or tablet and to connect these devices with the original radio- and/or navigation system of Toyota. The interface makes use of the original CD changer connection port.
Beside the interface is equipped with a Bluetooth carkit function.
Features:
- Connect your Bluetooth device wireless with the original radio/navigation system in CD quality
- Charge function through USB port
- Compatible with Apple, Android, Windows & Blackberry smartphones
- Automatic Stop-Play function when switching from iPod to FM/CD/Tape
- Controls of connected device via original steering wheel controls (when available)
- Controls of connected device via original radio/navigation buttons
- Controls of connected device itself
- Extra audio input via jack 3.5mm (MP3 or notebook)
- Supports music streaming via A2DP Bluetooth protocol
- Supports controls via AVRCP protocol
- Plug & Play cable kit
- Bluetooth carkit function (with controls)
- Automatic Stop/Play function with incoming calls
- Charge function through USB port
- Compatible with Apple, Android, Windows & Blackberry smartphones
- Automatic Stop-Play function when switching from iPod to FM/CD/Tape
- Controls of connected device via original steering wheel controls (when available)
- Controls of connected device via original radio/navigation buttons
- Controls of connected device itself
- Extra audio input via jack 3.5mm (MP3 or notebook)
- Supports music streaming via A2DP Bluetooth protocol
- Supports controls via AVRCP protocol
- Plug & Play cable kit
- Bluetooth carkit function (with controls)
- Automatic Stop/Play function with incoming calls
BLUETOOTH STREAMING FEATURES
Wireless connection via Bluetooth for audio streaming via A2DP complete with charge function possibility (via USB port).
When the source supports AVRCP technology it is even possible to control the connected source via the original radio- and/or navigation system. It is also possible to control via the device itself.
Control options:
- Next track
- Previous track
- Volume +
- Volume –
- Fast forward
- Previous track
- Volume +
- Volume –
- Fast forward
Controls also works with Apps like Spotify and Google Play.
AUX INPUT FEATURES
External AUX input via 3.5mm jack connection for connecting external audio sources such as:
- Notebook
- MP3 player
- DVD player
- Etc.
- MP3 player
- DVD player
- Etc.
BLUETOOTH CARKIT FEATURES
The NavInc Bluetooth interface is equipped with a carkit function with control functions and automatic Stop/Play function with incoming calls.
Features:
- Carkit function with automatic Stop/Play function
- Automatic synchronization of phone with Bluetooth interface
- Optional microphone with echo- and noise reduction
- Automatic mute function (only in CD changer mode)
- Accept, deny and hang up conversations via radio buttons
- Audio of conversations via original sound system
- Automatic synchronization of phone with Bluetooth interface
- Optional microphone with echo- and noise reduction
- Automatic mute function (only in CD changer mode)
- Accept, deny and hang up conversations via radio buttons
- Audio of conversations via original sound system
USB CHARGING FEATURES
The NavInc Bluetooth interface has a USB port for charging connected devices.
NOTES
- Check tab ‘Compatibility’ to see if the interface is suitable for your radio- and/or navigation system
- Audio streaming and carkit function only works on interface level (CD changer level)
- Controls of connected source only possible when device supports AVRCP technology
- USB port on device is only for charge function
- ID3 tag (text) support is not possible
Not available
COMPATIBILITY
CAR
This kit is compatible with the following models:
Honda
Passport 1998-2002 (toyota head-unit)
Lexus
GS 1997 – 2000
GS 2000 – 2005
GX 2003 – 2004
IS 1999 – 2005
LS 1997 – 2000
LS 2000 – 2003
LX 1998 – 2002
SC 1991 – 2001
LX 1998 – 2002
SC 1991 – 2001
Other models with 12-pins (5+7) radio systems.
Toyota
4Runner 1998 - 2002
Auris 2007 – 2010
4Runner 1998 - 2002
Auris 2007 – 2010
Auris 2010 - 201>
Avensis 1997 – 2000
Avensis 1997 – 2000
Avensis 2000 - 2003
Avensis 2003 - 2006
Camry 1999 - 2001
Camry 1999 - 2001
Camry 2001 - 2004
Carina E 1992 – 1997
Celica 1998 - 2003
Corolla 1997 - 2000
Carina E 1992 – 1997
Celica 1998 - 2003
Corolla 1997 - 2000
Corolla 2000 - 2002
Corolla 2002 - 2004
Corolla 2004 - 2007
Corolla Verso 2004 - 2007
FJ Cruiser na 2006
Highlander 1998 – 2003
Land Cruiser 1998 - 2002
Matrix 1998 – 2004
MR2 1998- 2002
Paseo 1992 – 1999
Passport 1998 – 2002
Pick Up na 1990
Picnic na 1990
Previa na 1990
RAV4 1994 – 2000
FJ Cruiser na 2006
Highlander 1998 – 2003
Land Cruiser 1998 - 2002
Matrix 1998 – 2004
MR2 1998- 2002
Paseo 1992 – 1999
Passport 1998 – 2002
Pick Up na 1990
Picnic na 1990
Previa na 1990
RAV4 1994 – 2000
RAV4 2000 - 2003
SportsVan 1996 – 2004
Startlet na 1993
Supra 1986 – 1998
Van 1987 – 1990
Yaris na 1999
SportsVan 1996 – 2004
Startlet na 1993
Supra 1986 – 1998
Van 1987 – 1990
Yaris na 1999
Other models with 12-pins (5+7) radio systems.
*Only in combination with the following radio- navigation systems.
Compatible for the following radio- navigation systems:
*Radio- navigatiesystemen met 12-pins (5+7 ) wisselaar aansluiting (connector B)
Tested on the following radio- navigation systems:
16408, 16810, 17809, 18201, 18301,18302, 18403, 18404, 18406, 35407, 35802, 38408, 55838, 56816, 57412, 57414, 58402, 58405, 58406, 58408, 58801, 58804, 58806, 58807, 58808, 58812, A 56811, A 56817, A 56818, W 58300, W 58802, WH 8406, A 56811, A 56817, A 56818, TF 0410, TF 4300, TF 4301, TM 4000, TM 4410 WH 8403, WH 8405, WH 8406, W53804 (Y- kabel noodzakelijk)
*Radio- navigatiesystemen met 12-pins (5+7 ) wisselaar aansluiting (connector B)
Tested on the following radio- navigation systems:
16408, 16810, 17809, 18201, 18301,18302, 18403, 18404, 18406, 35407, 35802, 38408, 55838, 56816, 57412, 57414, 58402, 58405, 58406, 58408, 58801, 58804, 58806, 58807, 58808, 58812, A 56811, A 56817, A 56818, W 58300, W 58802, WH 8406, A 56811, A 56817, A 56818, TF 0410, TF 4300, TF 4301, TM 4000, TM 4410 WH 8403, WH 8405, WH 8406, W53804 (Y- kabel noodzakelijk)
Remarks:
- Y-cable necessary (optional) for models with OEM navigation system or CD changer
- Only for radio- and/or navigation systems with 12-pins (5+7) changer connection
- Models up to 2003 have a 5+7 prins changer. Between 2003-2005 can also have a 6+6 CD changer connection. In this case use IP-TOY-A
- Other models of radio- navigation systems we do not have (yet) test results
- When model type is mentioned, please also check your system at ‘Compatibility’ tab
- When you doubt about compatibility please contact NavInc
- Original CD changer will remain
- No text support
- Skipping folders is limited to amount of optical CDs the original radio can handle
Image of 5+7-pins CD changer on radio:
Image of +7-pins CD changer interface:
Images of suitable radio- navigation systems:
Not suitable for the following models/systems:
Aygo
RAV4 model year 2003 with radio type 58805
RAV4 model year 2003 with radio type 58805
B9010
B9004 in RAV4 2007
RAV4 with navigation system
TNS Travel 700
T18303 radio systems
Prius 1
Prius 2
Auris Team with W13807 / W13081 / W13086 system
W58824 radio systems
W8832 radio systems
P3905 radio
T18303
W13807
W58805
TNS Travel 700
Lexus CS430 2001 with P3905 radio
PACKAGE CONTENTS
The following is provided in the set:
- Bluetooth interface: 1x
- Power cable: 1x
- Interface module: 1x
- Manual: 1x
- Service instructions: 1x
