Rear camera interface Renault Easylink 7" & 9.3"

DESCRIPTION

General

The NavInc NAVconnect interfaces allow for connecting video sources to the original Renault EasyLink system (7" & 9.3").

The interface is equipped with various options such as; 1* Front camera input & 1* Rear camera input.

Example video

Features

- 1x Rear camera input

- 1x Front camera input (with auto switch OFF)

- iPAS Parking lines

- Adjustubele parking lines via OSD menu

- OEM steering wheel button support

- 3 Year warranty & Support

EXCLUSIVE INTERFACE FEATURES

Features:

- Reverse Camera input

- Front camera input
- Image retention while driving
- Adjustable parking lines

- OSD menu

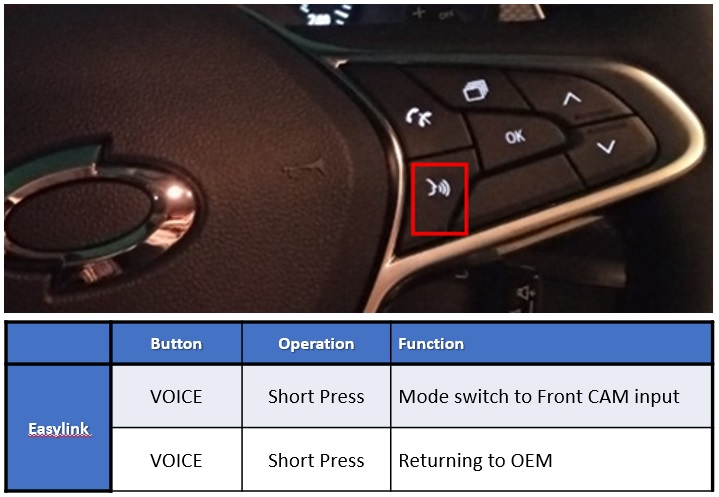

OEM BUTTON

CAMERA FEATURES

Rear camera input with Parking guidelines

Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.

The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.

Front camera input

Front camera input which will be selected after leaving the reverse gear.

Via the OSD menu you can select show time:

3 sec

5 sec

10 sec

15 sec

NOTES

- We recommend that the installation will be performed by a qualified specialist

- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"

LEGAL INFORMATION

The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.

Compatibility

Captur

2019-20..

Head-unit
Easylink 7" & 9.3" with and without NAV
Rear camera input
Front camera input
Side Camera
RGB input
LVDS input
HDMI input
A/V input
Yes
A/V output
No
Activation
OEM & Trigger
Open head-unit
Video signal in
NTSC/PAL
Guide lines
Static + Movable (IPAS)
Parking Sensor Display
Picture in Picture (PIP)
R-gear select
Lamp & CAN
Touch support
No
Coding needed

Clio

2019-20..

Head-unit
Easylink 7" & 9.3" with and without NAV
Rear camera input
Front camera input
Side Camera
RGB input
LVDS input
HDMI input
A/V input
Yes
A/V output
No
Activation
OEM & Trigger
Open head-unit
Video signal in
NTSC/PAL
Guide lines
Static + Movable (IPAS)
Parking Sensor Display
Picture in Picture (PIP)
R-gear select
Lamp & CAN
Touch support
No
Coding needed

Espace

2020-2023

Head-unit
Easylink 7" & 9.3" with and without NAV
Rear camera input
Front camera input
Side Camera
RGB input
LVDS input
HDMI input
A/V input
Yes
A/V output
No
Activation
OEM & Trigger
Open head-unit
Video signal in
NTSC/PAL
Guide lines
Static + Movable (IPAS)
Parking Sensor Display
Picture in Picture (PIP)
R-gear select
Lamp & CAN
Touch support
No
Coding needed

Megane

2020-2023

Note: Calculate extra instalment time
Head-unit
Easylink 7" & 9.3" with and without NAV
Rear camera input
Front camera input
Side Camera
RGB input
LVDS input
HDMI input
A/V input
Yes
A/V output
No
Activation
OEM & Trigger
Open head-unit
Video signal in
NTSC/PAL
Guide lines
Static + Movable (IPAS)
Parking Sensor Display
Picture in Picture (PIP)
R-gear select
Lamp & CAN
Touch support
No
Coding needed

Twingo

2019-2024

Head-unit
Easylink 7" & 9.3" with and without NAV
Rear camera input
Front camera input
Side Camera
RGB input
LVDS input
HDMI input
A/V input
Yes
A/V output
No
Activation
OEM & Trigger
Open head-unit
Video signal in
NTSC/PAL
Guide lines
Static + Movable (IPAS)
Parking Sensor Display
Picture in Picture (PIP)
R-gear select
Lamp & CAN
Touch support
No
Coding needed

ZOE

2019-2024

Head-unit
Easylink 7" & 9.3" with and without NAV
Rear camera input
Front camera input
Side Camera
RGB input
LVDS input
HDMI input
A/V input
Yes
A/V output
No
Activation
OEM & Trigger
Open head-unit
Video signal in
NTSC/PAL
Guide lines
Static + Movable (IPAS)
Parking Sensor Display
Picture in Picture (PIP)
R-gear select
Lamp & CAN
Touch support
No
Coding needed

Extra Information

COMPATIBILITY

CAR

This kit is compatible with the following models:

Renault

Renault Easylink (7”)

Renault Easylink (9.3")

Note:

- We recommend that the installation will be performed by a qualified specialist

AUDIO OUTPUT	The interface inserts ONLY video signals into the infotainment. It is essential to have an Aux-in, when using audio from an external AV source.
CVBS	Only compatible with NTSC sources.
LVDS	Not available
SCREEN	Interface is compatible with 7” & 9.3” monitors
FRONT CAMERA	The front camera input will automatically switch after leaving the reverse gear. You can set the display time in seconds via the OSD menu (1-15 sec).
OEM REAR CAMERA	The interface does not switch back automatically to the OEM rear camera input when the reverse gear is engaged.
GUIDELINES	iPAS & Static lines are available via the interface OSD menu
iPAS	iPAS option is available (moveable grid lines)
PIP	PiP option is available for original parking sensor overlay (Picture in Picture)
REAR SELECT CAMERA INPUT	When interface won’t respond on reverse CAN, please use the 12V reverse detection wire (grey wire)
INSTALLATION	We recommend that the installation will be performed by a qualified specialist

Packaging

PACKAGE CONTENTS

The following is provided in the set:

RC-REN-EASY

Package:

Power cable (HARETC0305 K): 1x
LVDS cable: 1x
Remote (REMOTE0001): 1x
IR eye (HIRCAB0002) 1x
Interface module: 1x
Manual: 1x
Service instructions: 1x
