Rear camera adapter Renault Easy Link 8inch P&P

DESCRIPTION

General

The NavInc NAVconnect interfaces allows for connecting an aftermarket camera to the original Easylink 8 inch system from Renault.

The interface is equipped with: 1* Rear camera input.

Features

- 1x Rear camera input

- Support NTSC cameras

- Parking sensor split screen option

- iPAS parking lines (moevable grid lines)

- 3 Year warranty & Support

CAMERA FEATURES

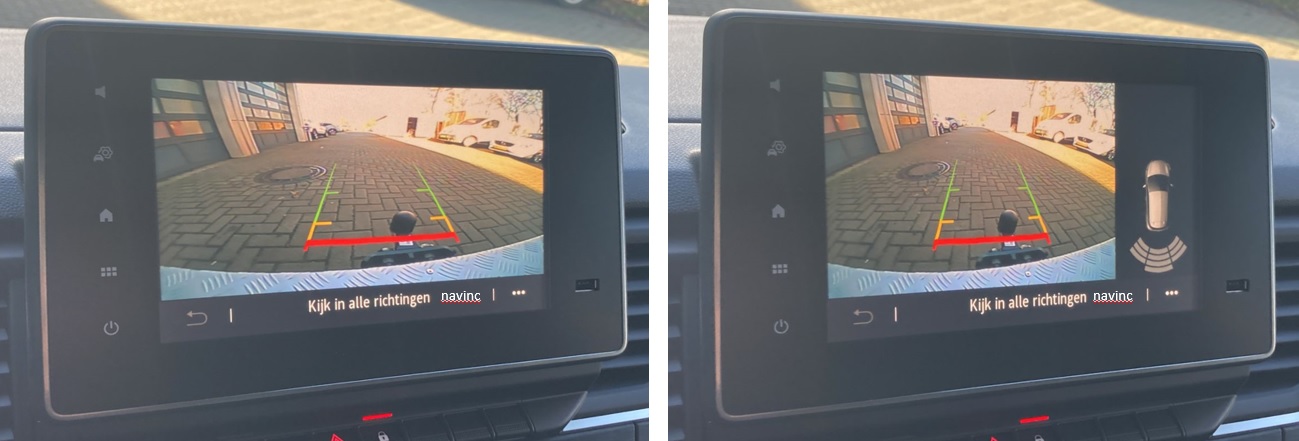

iPAS parking lines

The Easylink creates moveable grid lines in the camera picture.

The guidelines makes it much easier to determine the distance to the object you are driving towards.

The guidelines are not adjustable.

Split screen

The Easylink has a menu which you can select the full screen mode or splitscreen mode.

NOTES

- We recommend that the installation will be performed by a qualified specialist

- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"

Compatibility

PRIMASTAR

2022-20..

Open head-unit
Coding needed
Head-unit
Easylink 8"
Touch support
No
R-gear select
CAN
iPAS lines
Picture in Picture (PiP)
I-DRV
Guide lines
CVBS signal
NTSC
Rear camera input
Signal
CVBS
Activation
OEM
A/V output
A/V input
HDMI input
LVDS input
RGB input
Front camera input

Expresss

2022-20..

Note: Express must be with minimum 830R- firmware
Open head-unit
Coding needed
Head-unit
Easylink 8"
Touch support
No
R-gear select
CAN
iPAS lines
Picture in Picture (PiP)
I-DRV
Guide lines
CVBS signal
NTSC
Rear camera input
Signal
CVBS
Activation
OEM
A/V output
A/V input
HDMI input
LVDS input
RGB input
Front camera input

Kangoo

2021-20..

Open head-unit
Coding needed
Head-unit
Easylink 8"
Touch support
No
R-gear select
CAN
iPAS lines
Picture in Picture (PiP)
I-DRV
Guide lines
CVBS signal
NTSC
Rear camera input
Signal
CVBS
Activation
OEM
A/V output
A/V input
HDMI input
LVDS input
RGB input
Front camera input

Trafic

2022-20..

Open head-unit
Coding needed
Head-unit
Easylink 8"
Touch support
No
R-gear select
CAN
iPAS lines
Picture in Picture (PiP)
I-DRV
Guide lines
CVBS signal
NTSC
Rear camera input
Signal
CVBS
Activation
OEM
A/V output
A/V input
HDMI input
LVDS input
RGB input
Front camera input

Extra Information

COMPATIBILITY

This kit is compatible with the following head-units

Renault Easylink 8 inch

Nissan Easylink 8 inch

REQUIREMENT

CVBS	Only compatible with NTSC sources.
INPUTS	Rear camera input
SCREEN	Interface is compatible with 8” Easylink monitors
GUIDELINES	iPAS lines are supported
PiP	Split screen function supported for the original parking sensors.
REAR SELECT CAMERA INPUT	Interface will respond by CAN-BUS
INSTALLATION	We recommend that the installation will be performed by a qualified specialist
EXTRA NOTE	Car most be coded with Renault ADT program. Express must be with minimum 830R- firmware (previous firmware gets black screen) Not compatible with Dacia

LEGAL INFORMATION

The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.

Packaging

PACKAGE CONTENTS

The following is provided in the set:

Package:

RC-REN-ESX8C: 1x
Manual with coding instructions: 1x
Service instructions: 1x
