DESCRIPTION
General
With the NAVconnect interface it is possible to connect an aftermarket video sources to the original Uconnect system from: Jeep, Dodge, Maserati & Fiat.
Features
- Rear camera input
- Front camera input (with auto switch OFF)
- Side view camera input (left/right)
- Side view cameras responding on the left/right indicator
- LVDS input (to connect APPplay & NAVplay)
- HDMI input
- Adjustable parking lines via OSD menu
- iPAS lines (moveable gridlines)
- Steering wheel button support
- Support CVBS
- 3 Year warranty & Support
Example video

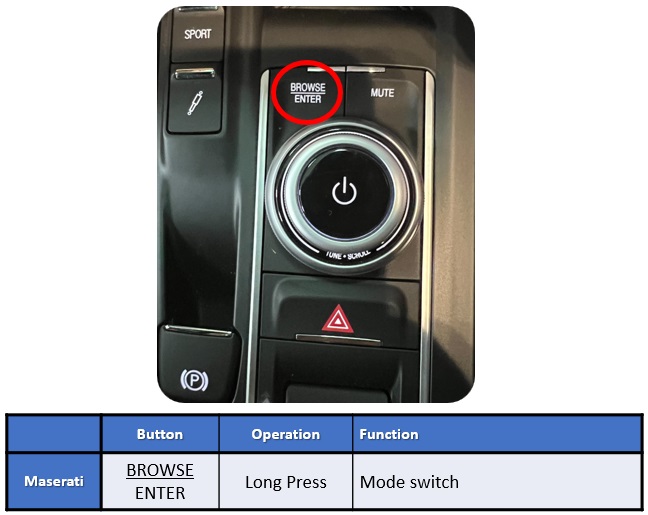

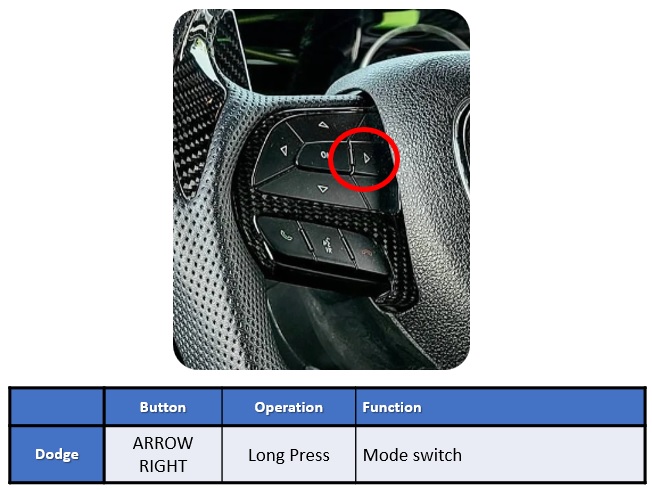

OEM BUTTON


CAMERA FEATURES
Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.
The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.
Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
3 sec
5 sec
10 sec
15 sec
NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"
LEGAL INFORMATION
The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.
Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.
Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.
Ram
2021-20..
- Note: Side view camera input (Left & Right)
- Open head-unit
- Head-unit
Uconnect 8.4" & 12" - with seperate HU - Touch support
OEM - R-gear select
CAN & Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
AHD/NTSC - Rear camera input
- Signal
HSD 4-pins - Activation
Switch & OEM - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
500
2020-20..
- Note: Handle button not supported / 10.25inch not supported yet
- Open head-unit
- Head-unit
Uconnect 7.0- with seperate HU - Touch support
No - R-gear select
CAN & Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
AHD/NTSC - Rear camera input
- Signal
HSD 4-pins - Activation
Switch - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Ducato (3 - serie 8)
2021-20..
- Note: Side view camera input (Left & Right)
- Open head-unit
- Head-unit
Uconnect 10.0" - with seperate HU - Touch support
OEM - R-gear select
CAN & Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
AHD/NTSC - Rear camera input
- Signal
HSD 4-pins - Activation
Switch & OEM - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Compass
2022-20..
- Note: Not compatible with 8.4 All-in one monitor - Side view camera input (Left & Right)
- Open head-unit
- Head-unit
Uconnect 10.1" - with seperate HU - Touch support
OEM - R-gear select
Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
AHD/NTSC - Rear camera input
- Signal
HSD 4-pins - Activation
Switch - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Grand Cherokee
2022-20..
- Note: Side view camera input (Left & Right)
- Open head-unit
- Head-unit
Uconnect 10.1" - with seperate HU - Touch support
OEM - R-gear select
CAN & Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
AHD/NTSC - Rear camera input
- Signal
HSD 4-pins - Activation
Switch & OEM - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Grecale
2022-20..
- Note: Side view camera input (Left & Right)
- Open head-unit
- Head-unit
Uconnect 10" - with seperate HU - Touch support
OEM - R-gear select
CAN & Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
AHD/NTSC - Rear camera input
- Signal
HSD 4-pins - Activation
Switch & OEM - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Levante
2021-20..
- Note: Side view camera input (Left & Right)
- Open head-unit
- Head-unit
Uconnect 8.4" - with seperate HU - Touch support
OEM - R-gear select
CAN & Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
AHD/NTSC - Rear camera input
- Signal
HSD 4-pins - Activation
Switch & OEM - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
