BT-TOY-A

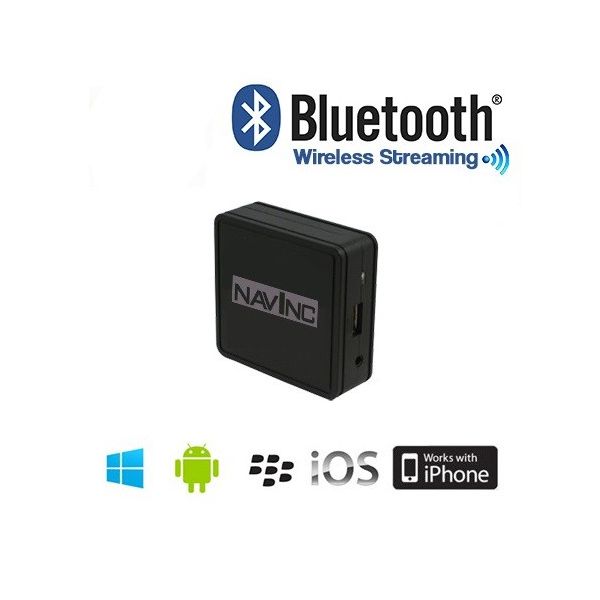

Lexus_Toyota Bluetooth streaming interface incl. Carkit function & AUX option (small)
DESCRIPTION
General
With the NavInc Bluetooth interface it is possible to stream audio through every smartphone or tablet and to connect these devices with the original radio- and/or navigation system of Lexus & Toyota. The interface makes use of the original CD changer connection port.
Beside the interface is equipped with a Bluetooth carkit function.
Features:
- Connect your Bluetooth device wireless with the original radio/navigation system in CD quality
- Charge function through USB port
- Compatible with Apple, Android, Windows & Blackberry smartphones
- Automatic Stop-Play function when switching from iPod to FM/CD/Tape
- Controls of connected device via original steering wheel controls (when available)
- Controls of connected device via original radio/navigation buttons
- Controls of connected device itself
- Extra audio input via jack 3.5mm (MP3 or notebook)
- Supports music streaming via A2DP Bluetooth protocol
- Supports controls via AVRCP protocol
- Plug & Play cable kit
- Bluetooth carkit function (with controls)
- Automatic Stop/Play function with incoming calls
- Charge function through USB port
- Compatible with Apple, Android, Windows & Blackberry smartphones
- Automatic Stop-Play function when switching from iPod to FM/CD/Tape
- Controls of connected device via original steering wheel controls (when available)
- Controls of connected device via original radio/navigation buttons
- Controls of connected device itself
- Extra audio input via jack 3.5mm (MP3 or notebook)
- Supports music streaming via A2DP Bluetooth protocol
- Supports controls via AVRCP protocol
- Plug & Play cable kit
- Bluetooth carkit function (with controls)
- Automatic Stop/Play function with incoming calls
BLUETOOTH STREAMING FEATURES
Wireless connection via Bluetooth for audio streaming via A2DP complete with charge function possibility (via USB port).
When the source supports AVRCP technology it is even possible to control the connected source via the original radio- and/or navigation system. It is also possible to control via the device itself.
Control options:
- Next track
- Previous track
- Volume +
- Volume –
- Fast forward
- Previous track
- Volume +
- Volume –
- Fast forward
Controls also works with Apps like Spotify and Google Play.
AUX INPUT FEATURES
External AUX input via 3.5mm jack connection for connecting external audio sources such as:
- Notebook
- MP3 player
- DVD player
- Etc.
- MP3 player
- DVD player
- Etc.
BLUETOOTH CARKIT FEATURES
The NavInc Bluetooth interface is equipped with a carkit function with control functions and automatic Stop/Play function with incoming calls.
Features:
- Carkit function with automatic Stop/Play function
- Automatic synchronization of phone with Bluetooth interface
- Optional microphone with echo- and noise reduction
- Automatic mute function (only in CD changer mode)
- Accept, deny and hang up conversations via radio buttons
- Audio of conversations via original sound system
- Automatic synchronization of phone with Bluetooth interface
- Optional microphone with echo- and noise reduction
- Automatic mute function (only in CD changer mode)
- Accept, deny and hang up conversations via radio buttons
- Audio of conversations via original sound system
USB CHARGING FEATURES
The NavInc Bluetooth interface has a USB port for charging connected devices.
NOTES
- Check tab ‘Compatibility’ to see if the interface is suitable for your radio- and/or navigation system
- Audio streaming and carkit function only works on interface level (CD changer level)
- Controls of connected source only possible when device supports AVRCP technology
- USB port on device is only for charge function
- ID3 tag (text) support is not possible
Not available
COMPATIBILITY
CAR
This kit is compatible with the following models:
Lexus
ES 2003 – 2006
IS 2005 – 2009
ES 2005 – 2008
GS 2005 – 2007
ES 2003 – 2006
IS 2005 – 2009
ES 2005 – 2008
GS 2005 – 2007
RX 2003 – 2009
LS 2003 – 2006
LX 2003 – 2007
Other models with 12-pins (6+6) radio systems.
LS 2003 – 2006
LX 2003 – 2007
Other models with 12-pins (6+6) radio systems.
Toyota
4Runner 2003 – 2011
Auris 2007 - 2010
4Runner 2003 – 2011
Auris 2007 - 2010
Auris 2010 - 201>
Avensis 2003 - 2006
Avensis 2006 - 2009
Avensis Verso 2003 - 2006
Avensis Verso 2006 - 2009
Camry 2005 - 2011
Celica 2003 – 2005
Corolla 2004 - 2007
Camry 2005 - 2011
Celica 2003 – 2005
Corolla 2004 - 2007
Corolla 2007 - 2010
Corolla Verso 2004 - 2007
FJ Cruiser na 2006
Land Cruiser 2003 – 2006
FJ Cruiser na 2006
Land Cruiser 2003 – 2006
Highlander 2004 - 2011
MR2 2003 - 2005
MR2 2003 - 2005
Matrix 2005 - 2011
Picnic na 2003
Prado 2003 – 2005
Prius II 2004 - 2006
Picnic na 2003
Prado 2003 – 2005
Prius II 2004 - 2006
Prius 2006 - 2009
Startlet / Vitz na 2003
RAV4 2003 - 2006
Startlet / Vitz na 2003
RAV4 2003 - 2006
RAV4 2006 - 2009
RAV4 2009 - 2010
Verso 2007 - 2009
Verso 2009 - 201>
Yaris 2003 - 2005
Yaris 2003 - 2005
Yaris 2005 - 2009
Yaris 2009 - 2011
Yaris 2011 - 201>
*Only in combination with the following radio- navigation systems.
Compatible with the following radio systems:
*Radio- navigation systems with 12-pins (6+6 ) chanber connection (connector A).
Tested on the following radio- navigation systems:
16852, 12821, 13803, 17006, 17828, 50323, 53816, 53818, 58814, 58816, 58827, P 3914, P 3916, P 7809, A 56828, W 53901, W 53903, W 53904, W 53905, W 58810, W 58814, W 58831, W58824
Tested on the following radio- navigation systems:
16852, 12821, 13803, 17006, 17828, 50323, 53816, 53818, 58814, 58816, 58827, P 3914, P 3916, P 7809, A 56828, W 53901, W 53903, W 53904, W 53905, W 58810, W 58814, W 58831, W58824
Auris 2007 with Full map navigation system
W58816HU
Land Cruiser kdh120, model year 2007 with P3745 navigation system
Land Cruiser kdh120, model year 2007 with P0374 navigation system
B9002 Navigation system
TNS600/ B9000 navigation
Remarks:
- Y-cable necessary (optional) for models with OEM navigation system or CD changer
- Only for radio- and/or navigation systems with 12-pins (6+6) changer connection
- Other models of radio- navigation systems we do not have (yet) test results
- When model type is mentioned, please also check your system at ‘Compatibility’ tab
- When you doubt about compatibility please contact NavInc
- Original CD changer will be disconnected
- No text support
- Skipping folders is limited to amount of optical CDs the original radio can handle
Image of 6+6-pins CD changer on radio:
Image of 6+6-pins CD changer interface:
Images of suitable radio- navigation systems:
Not suitable for the following systems:
Travel TNS7000
B9010
W13807
W58832
W58824
58805
T18303
Lexus SC with radio code P3933
PACKAGE CONTENTS
The following is provided in the set:
- Bluetooth interface: 1x
- Power cable: 1x
- Interface module: 1x
- Manual: 1x
- Service instructions: 1x
