DESCRIPTION
General

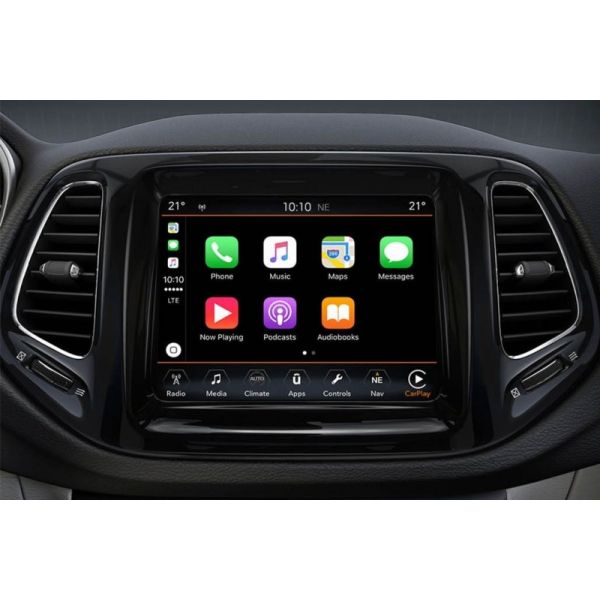

Front & Rear camera interface Jeep & Dodge Uconnect 8.4" - 2018>. This interface allows you to add an aftermarket reverse camera and/or front camera to the factory screen. .
Features
# Auto switching back up camera
# Auto switchting fromt camera iniput
# No programming required
# Setting menu to adjust; brightness/contrast/saturation
# Setting menu to adjust front camera time to show
# Setting menu to adjust position of parking lines
CAMERA FEATURES
Parking guidelines
In the camera image on screen parking guidelines can be displayed. This makes it much easier to determine the distance to the object you are driving towards. The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.
Intelligent Park Assist System (IPAS)
The interface have also the Intelligent Park Assist System (iPAS). With this function the guidelines will respond on the steering wheel position. The guide lines are adjustable horizontal and vertical via the interface OSD menu.
PACKAGE CONTENTS
The following is provided in the set:
- Main interface board (QCPASS1314): 1x
- Small board (DODGE-5CH-EX-V1.1): 1x
- Multi cable (HARETC03035): 1x
- CAN P&P (HARETC0091): 1x
- FFC cable short (FFCABL0082): 1x
- FFC cable long (FFCBAL0039): 1x
- Remote (REMOTE0001): 1x
- Infrared cable (HIRCAB0002): 1x
- Button (HARETC0001): 1x
- Installation- & user instructions
- Warranty
NOTES
- We recommend that the installation will be performed by a qualified specialist
- iPAS not compatible with all models (limited)
PRODUCT SPECIFICATIONS
Challenger
2018-20..
- Note: with all-in one head-unit (capacitive touch)
- Open head-unit
- Coding needed
- Head-unit
Uconnect Smart touch (8.4") - Touch support
No - R-gear select
Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
NTSC - Rear camera input
- Signal
LVDS - Activation
Trigger - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Ram*
2018-2019
- Note: not for version with computer in booth
- Open head-unit
- Coding needed
- Head-unit
Uconnect Smart touch - all-in one (8.4") - Touch support
No - R-gear select
Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
NTSC - Rear camera input
- Signal
LVDS - Activation
Trigger - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Compass
2018-20..
- Note: with all-in one head-unit (capacitive touch)
- Open head-unit
- Coding needed
- Head-unit
Uconnect Smart touch (8.4") - Touch support
No - R-gear select
Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
NTSC - Rear camera input
- Signal
LVDS - Activation
Trigger - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Grand Cherokee
2018-20..
- Note: with all-in one head-unit (capacitive touch)
- Open head-unit
- Coding needed
- Head-unit
Uconnect Smart touch (8.4") - Touch support
No - R-gear select
Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
NTSC - Rear camera input
- Signal
LVDS - Activation
Trigger - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Renegade
2018-2020
- Note: From 2021 --> RC-FIAT-G7V
- Open head-unit
- Coding needed
- Head-unit
Uconnect Smart touch (8.4") - Touch support
No - R-gear select
Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
NTSC - Rear camera input
- Signal
LVDS - Activation
Trigger - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
Wrangler
2019-20..
- Note: with all-in one head-unit (capacitive touch)
- Open head-unit
- Coding needed
- Head-unit
Uconnect Smart touch (8.4") - Touch support
No - R-gear select
Lamp - iPAS lines
- Picture in Picture (PiP)
- I-DRV
- Guide lines
- CVBS signal
NTSC - Rear camera input
- Signal
LVDS - Activation
Trigger - A/V output
- A/V input
- HDMI input
- LVDS input
- RGB input
- Front camera input
COMPATIBILITY
Compatible with the following models
Compatible with the following models
Jeep
| Compass | 2018-20.. | Uconnect Smart touch (8.4") |
| Grand Cherokee | 2018-20.. | Uconnect Smart touch (8.4") |
| Renegade | 2018-20.. | Uconnect Smart touch (8.4") |
| Wrangler | 2019-20.. | Uconnect Smart touch (8.4") |
| *iPAS not always available | ||
Dodge
| Challenger | 2018-20.. | Uconnect Smart touch (8.4") |
| Ram* | 2018-2019 | Uconnect Smart touch (8.4") |
| *iPAS not always available | ||
Remarks:
- Only in combination with 8.4" Uconnect navigation system.
- Only compatible with NTSC sources
- Also possible to use the interface stand alone for reversing and/or forward driving camera function.
- Automatic switching to camera on navigation level.
