DAB+ interface for Audi with MMI 3G & 3G+ via DAB Level (MOST)

DAB-AUDI-3G

Consumer?

Find the nearest store or webshop.

Where to buy

Business customer?

Register for exclusive access to our full assortment and pricing.

Register
Product Datasheet

General
The Audi DAB+ kit integrates DAB & DAB+ into your Audi MMI 3G & 3G Plus system without any loss of sound quality!! It will also allow you to control the DAB stations through your factory MMI and steering wheel controls.
You can select the DAB interface via Audi MMI menu via "DAB (Digital radio)".

Features:
# DAB & DAB+  with perfect digital Quality Sound!
# DAB Text support
# DAB & DAB+ codec
# Last Memory function
# Control the stations via MMI button and steering wheel
# Plug and play Cable kit
# Conservation of OEM CD changer
# Possible to use OEM car antenna

Screen shot MMI display:

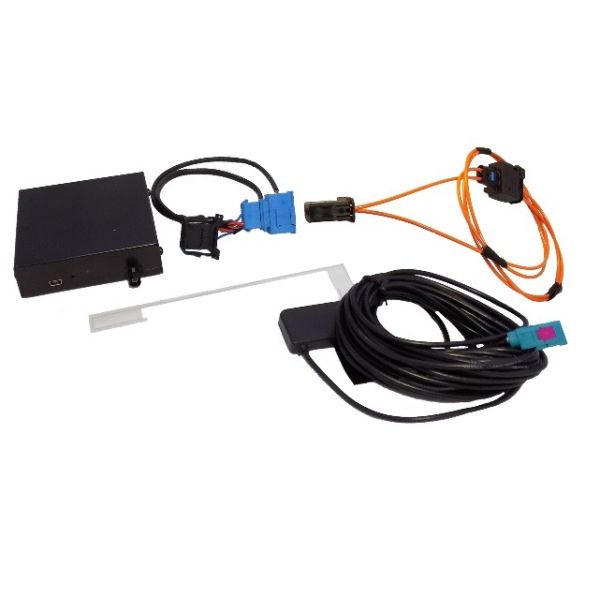

Delivery Package:
- NavInc DAB interface: 1x
- Power cable: 1x
- DAB antenna: 1x
- Instructions
- Warranty
- Invoice


Extra information:
- No automatic switching of DAB <-> FM
- On vehicles up to model year 2011, and with MMI software version lower than P respectively K0029 an MMI software update is necessary
- There is no automatic station search, this must be started manually via the MMI
- Vehicles with DAB from the factory has to use the article number DAB-AUDI-CD. In this case, the vehicle may not have a CD changer or a DVD changer
- Manual tuning is only necessary for regional ensembles while the car is travelling across regions with different regional ensembles. There's no new scan required for global ensembles.


Product specifications:
Voltage supply: 12V DC
Voltage-operating capacity: 10,5 – 14,8 V
Standby current: 7 mA
Operating current: 120 mA
Power input: 1,80 W
Temperature range: - 30°C up to + 80°C
Weight: 95g
Dimensions W x H x D: 90 x 35 x 65 mm


Car models:
The interface is compatible with the following car models:
A1 (8X) 2010-201> (PR-Nr. 7T6)
A4 (8K) 2011-2016 (PR-Nr. 7T2, 7T6)
A5 (8T) 2011-201> (PR-Nr. 7T2, 7T6)
A6 (4F) 2008-2011 (PR-Nr. 7T2, 7T6)
A6 (4G) 2011-2014 (PR-Nr. 7T6)
A7 (4G) 2010-201> (PR-Nr. 7T6)
A8 (4E) 2007-2010 (PR-Nr. 7T6)
A8 (4H) 2010-2013 (PR-Nr. 7T6)
Q3 (8U) 2011-201> (PR-Nr. 7T6)
Q5 (8R) 2012-201> (PR-Nr. 7T2, 7T6)
Q7 (4L) 2009-2015 (PR-Nr. 7T2, 7T6)


Note:
- No automatic switching of DAB <-> FM
- On vehicles up to model year 2011, and with MMI software version lower than P respectively K0029 an MMI software update is necessary
- There is no automatic station search, this must be started manually via the MMI
- Vehicles with DAB from the factory has to use the article number DAB-AUDI-CD. In this case, the vehicle may not have a CD changer or a DVD changer
- Manual tuning is only necessary for regional ensembles while the car is travelling across regions with different regional ensembles. There's no new scan required for global ensembles.



General
The Audi DAB+ kit integrates DAB & DAB+ into your Audi MMI High 2G system without any loss of sound quality!! It will also allow you to control the DAB stations through your factory MMI and steering wheel controls.
You can select the DAB interface via Audi MMI menu via "DAB (Digital radio)".

Features:
# DAB & DAB+  with perfect digital Quality Sound!
# DAB Text support
# DAB & DAB+ codec
# Last Memory function
# Control the stations via MMI button and steering wheel
# Plug and play Cable kit
# Conservation of OEM CD changer
# Automatic switching of DAB <-> FM
(Switching is done only if the corresponding station is receivable on FM band and no DAB signal is present)

Screen shot FIS display:


Delivery Package:
- NavInc DAB interface: 1x
- Power cable: 1x
- DAB antenna: 1x
- Instructions
- Warranty
- Invoice


Extra information:
- Connect original CD changer and DAB interface is possible
- Minimum MMI software version: 3640
- Connection of Dension Gatewayh 500 and the iPod interface is possible
- Connection of Multimedia AV interface and the iPod interface is possible
- Connection of the iPod interface and 2x6 OEM CD changer is possible
- E-13 certifation - 10R - 04 12788
- There is no automatic station search, this must be started manually via the MMI
- Manual tuning is only necessary for regional ensembles while the car is travelling across regions with different regional ensembles. There's no new scan required for global ensembles.


Product specifications:
Voltage supply: 12V DC
Voltage-operating capacity: 10,5 – 14,8 V
Standby current: 7 mA
Operating current: 120 mA
Power input: 1,80 W
Temperature range: - 30°C up to + 80°C
Weight: 95g
Dimensions W x H x D: 90 x 35 x 65 mm
