FHD-FIAT-DOB

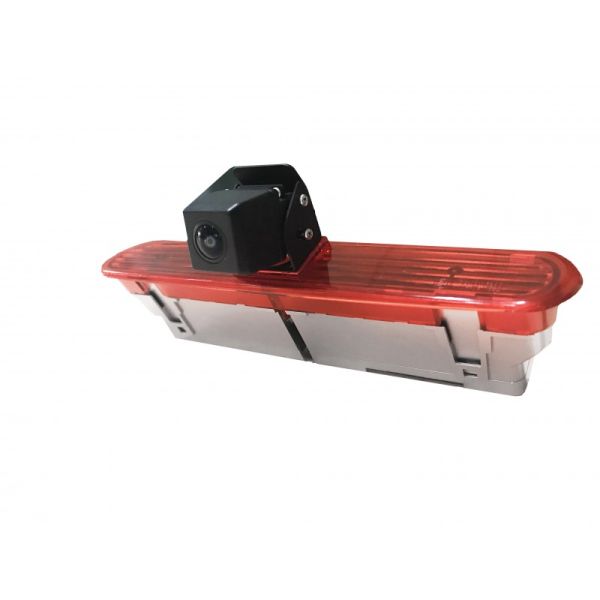

FHD/CVBS Brake light camera Fiat Doblo_Opel Combo 2011-2017 (NTSC)


DESCRIPTION

General
Brake light reverse camera is specially designed for Fiat Doblo (2010-2021) Opel/Vauxhall Combo (2011-2017) vehicle models.

This camera replaces the original brake light so it maintains its original appearance.


Features
- 1/3 inch image sensor CVBS/AHD
- View angle: 165°D
- Resolution 1920(H)x1080(V)
- 2000TVL (FHD) 1000TVL (CVBS)
- Igntion Power proof (+15)
- IP69K Waterproof
- Night vision
- E-mark certification: E9-10R.05.1811
- CE-mark: EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC-mark: ANSI C63.4-2003
- 2 Year warranty & Support


EXCLUSIVE CAMERA FEATURES

FHD & CVBS support
Loop wire to switch from FHD to CVBS signal.


Adjustable head
Possible to adjust the camera lens.


Bulging auto correction
Unwanted bulging in the camera image is automatically corrected.


Discoloration auto correction
Unwanted discolorations in the camera image is automatically corrected.


Overlighting auto correction
The appearance of a bright background or lamps in the camera image is automatically corrected.


Ignition Power proof (+15)
It is possible to connect the powersupply to an ignition feed (+15), because we use the highest quality camera.
In this way you are able to watch the camera also in DRIVE gear or via manual selection.



NOTES

- We recommend that the installation will be performed by a qualified specialist
- Check also the other tabs for "Compatibility" - "Package contents" - "Product specifications"
- Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.


LEGAL NOTICE

Please check before purchase if it is aloud to install this camera and it wont affect your MOT.



Doblo

2010-2019

  • Note: Only compatible with doors
  • Parking line wire
  • Mirror wire
  • FHD/CVBS wire
  • Extension cable included
    No
  • Connector type
    Aviation & RCA
  • Camera Signal
    CVBS/FHD 1080P
  • CVBS signal
    NTSC
  • Waterproof
    IP69K
  • IR leds
  • TV lines
    FHD: 2000 / CVBS: 1000
  • View
    165° Diagonal
  • Voltage range
    9-35V

Combo D

2010-2015

  • Note: Only compatible with doors
  • Parking line wire
  • Mirror wire
  • FHD/CVBS wire
  • Extension cable included
    No
  • Connector type
    Aviation & RCA
  • Camera Signal
    CVBS/FHD 1080P
  • CVBS signal
    NTSC
  • Waterproof
    IP69K
  • IR leds
  • TV lines
    FHD: 2000 / CVBS: 1000
  • View
    165° Diagonal
  • Voltage range
    9-35V

Combo D

2015-2021

  • Note: Only compatible with doors
  • Parking line wire
  • Mirror wire
  • FHD/CVBS wire
  • Extension cable included
    No
  • Connector type
    Aviation & RCA
  • Camera Signal
    CVBS/FHD 1080P
  • CVBS signal
    NTSC
  • Waterproof
    IP69K
  • IR leds
  • TV lines
    FHD: 2000 / CVBS: 1000
  • View
    165° Diagonal
  • Voltage range
    9-35V

Combo D

2011-2017

  • Note: Only compatible with doors
  • Parking line wire
  • Mirror wire
  • FHD/CVBS wire
  • Extension cable included
    No
  • Connector type
    Aviation & RCA
  • Camera Signal
    CVBS/FHD 1080P
  • CVBS signal
    NTSC
  • Waterproof
    IP69K
  • IR leds
  • TV lines
    FHD: 2000 / CVBS: 1000
  • View
    165° Diagonal
  • Voltage range
    9-35V

COMPATIBILITY

CAR
This camera is compatible with the following vehicles:

Fiat
Doblo 2011-20..

Opel
Combo 2011-2017


NOTES

- RCA output = male
- FHD or CVBS signal is NTSC





PACKAGE CONTENTS

The following is provided in the set:

CAM-PSA-BRPRO

Package:
  1. Brake light camera 1x
  2. Power cable: 1x
  3. Y-cable adapter to RCA (male): 1x
  4. Installation instructions: 1x
Extension cable is optional
