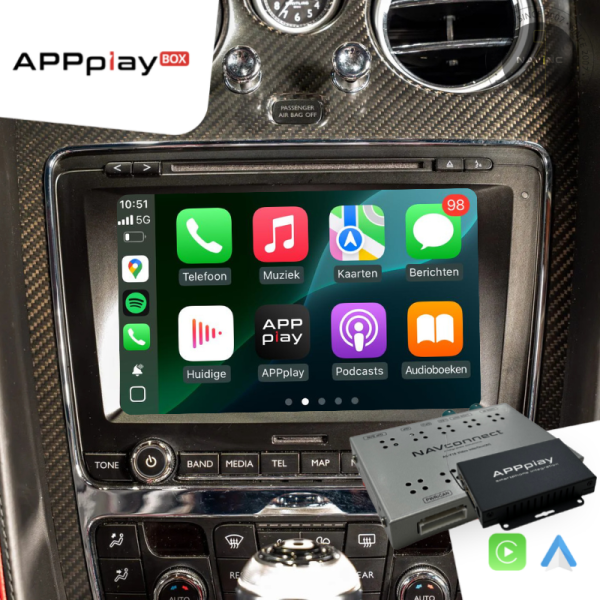

APPplay_CARplay & Android Auto set Bentley & VW Phaeton RNS-810

Upgrade your Bentley/VW Phaeton vehicles equipped with the RNS-810 infotainment system and experience wireless CarPlay & Android Auto without compromises – while retaining all original vehicle functions.

APPplay box, our smartphone solution, support wireless Carplay & Android AUTO integration to your existing multimedia system. You can run the most popular apps from your Phone (such as Spotify, Google maps, Waze, Whatsapp and more) with control everything via your original steering wheel & Touch screen just like factory-installed systems.

In addition it allows you to mirror your Smartphone, add Front and/or Rear camera and USB playback.

Features

✅Wireless Carplay

✅Wireless Android AUTO

✅Original Touch screen support

✅Original car button support

✅Audio via Bluetooth streaming*

✅Retain Original Hands-Free Kit & Microphone**

✅Voice control support (Siri & Google Assistant)

✅Rear view camera input (with static parking lines)

✅Front view camera input

✅MirrorLink support***

✅USB media support***

✅2 Years warranty

❌For Mirrorlink you must have an AUX input in the car

❌Need to open the monitor to install the sub-board

NOTES

*When the car does not have audio streaming, AUX input option in the car is required

**The car must have original Bluetooth carkit and streaming to support the original microphone.

***AUX input is required when you want to use the USB or Mirrorlink feature.

- Check the other product tabs for Compatibility and extra information.

Compatibility

Continental GT

2010-2018

Head-unit
RNS-810 (8")
APPplay control
Oem touch screen
All in one APPplay
Audio APPplay
Bluetooth / AUX
Rear camera input
Front camera input
Activation
Switch & OEM
Open head-unit
Video signal in
NTSC
Guide lines
Static
Parking Sensor Display
No
R-gear select
Lamp & CAN

Flying Spur

2013-2019

Head-unit
RNS-810 (8")
APPplay control
Oem touch screen
All in one APPplay
Audio APPplay
Bluetooth / AUX
Rear camera input
Front camera input
Activation
Switch & OEM
Open head-unit
Video signal in
NTSC
Guide lines
Static
Parking Sensor Display
No
R-gear select
Lamp & CAN

Phaeton

2010-2016

Head-unit
RNS-810 (8")
APPplay control
Oem touch screen
All in one APPplay
Audio APPplay
Bluetooth / AUX
Rear camera input
Front camera input
Activation
Switch & OEM
Open head-unit
Video signal in
NTSC
Guide lines
Static
Parking Sensor Display
No
R-gear select
Lamp & CAN

Extra Information

AUDIO OUTPUT	Audio goes via the original Bluetooth from the car
VIDEO OUTPUT	Video goes via LVDS
CONTROL	You can control CARplay & Android AUTO via the original touch screen
SCREEN	Compatible with Bentley & Phaeton RNS-810
OPEN HU	Need to open the monitor to install FPC cable
FRONT CAMERA	The front camera input will automatically switch after leaving the reverse gear. You can set the display time in seconds via the OSD menu (1-20 sec). It is also possible to select the FRONT camera input manually
OEM REAR CAMERA	The interface does switch back automatically to the OEM rear camera input when the reverse gear is engaged (CAN or analog wire)
GUIDELINES	Parking lines are available via the interface OSD menu
iPAS	iPAS option is not available (moveable grid lines)
PIP	PiP option is not available (Picture in Picture)
REAR SELECT CAMERA INPUT	Interface will not respond on CAN, please use the rear detection wire.
INSTALLATION	We recommend that the installation will be performed by a qualified specialist
