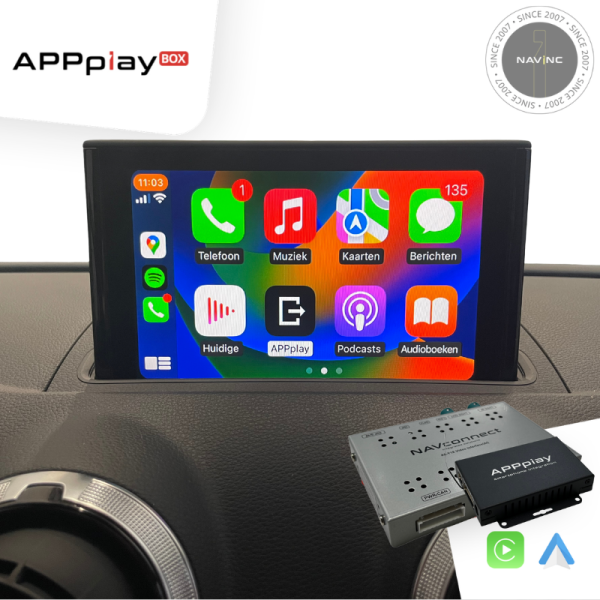

APPplay_CARplay & Android Auto set Audi A3 8V (RGB)

DESCRIPTION

General

Upgrade your Audi with APPplay smartphone interface. APPplay support multimedia via USB, CARPLAY & ANDROID Auto & camera to your existing system.

You can run apps from your Phone via CarPlay & Android Auto without touching your Phone. You can control APPplay via the original MMI and via voice control (Siri).

Example video

Features

- Control via original MMI

- Control via voice (Siri & Google Assistant)

- Run navigation apps like; Google maps, TomTom & Waze

- Play music apps like; Spotify, Podcast, Music

- Making phone calls and listening to your messengers

- Rear camera input

- Front camera input

- AV input

- Original button support

- Original microphone support

- Picture while driving

- 2 Year warranty & Support

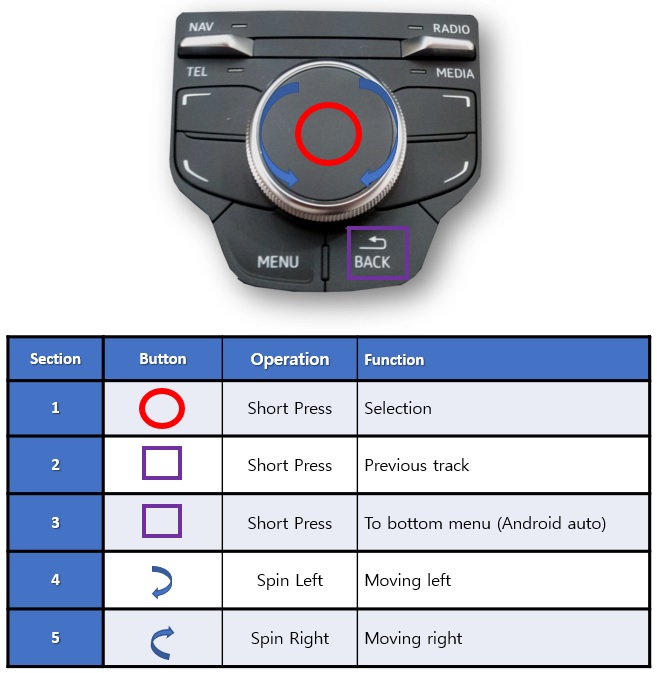

APPplay control

EXCLUSIVE APPplay FEATURES

Features:

- Run apps like; Spotify / Flitzmeister / Apple Maps / Waze / Google maps

- Hands-free phone and messaging

- Siri Voice Control

- Music & video playback via USB

- Bluetooth pairing option available

- Wireless CARplay function via Wifi (optional)

- Integrated Audio control with equalizer

- Analog audio output (via RCA or 3.5mm jack)

- Support left & right hand drive cars

- Software updates via USB

APPplay main screen

APPplay setting menu

APPplay media player menu

EXCLUSIVE VIDEO INTERFACE FEATURES

Features:

- OEM button support

- Rear camera input (CVBS - NTSC)

- Front camera input (CVBS - NTSC)

- A/V input (to connect DVB-T tuner)

- A/V output (to connect head-rest screens)

- OSD menu (to adjust interface settings)

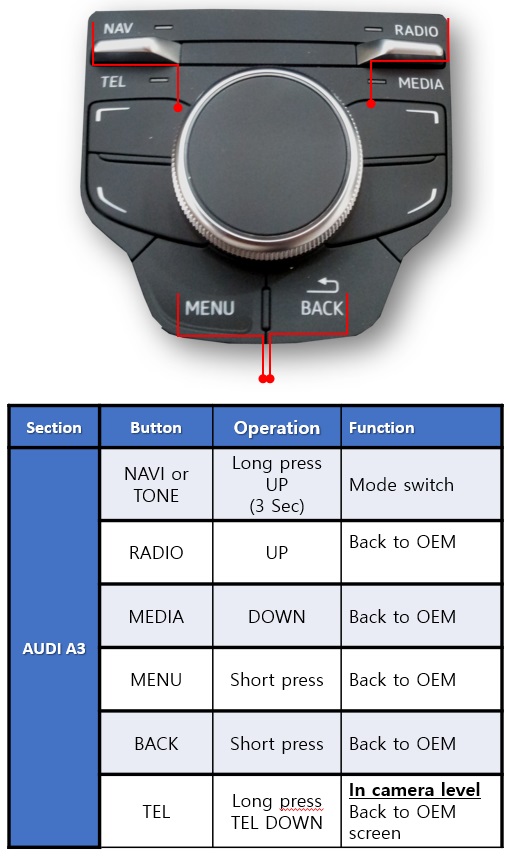

NAVconnect OEM Button

NOTES

- It is essential to have an Aux-in, Bluetooth streaming option or USB input in the car.

- We recommend that the installation will be performed by a qualified specialist

- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"

DISCLAIMER

Apple, iPod, iPhone, iTunes, CarPlay and the CarPlay logo are registered trademarks of Apple Inc., registered in the U.S. and other countries. Android, Android Auto, Google Maps, Waze

and Talk to Google are registered trademarks of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.

Compatibility

A3 (8V)

2013-2020

Note: Rear select via CAN only with auto gearbox
Head-unit
MMI Radio plus/MIB Entry & plus/MIB std (5.8" & 7.0")
APPplay control
Oem MMI
All in one APPplay
Audio APPplay
Bluetooth / AUX
Rear camera input
Front camera input
Activation
Switch & OEM Button
Open head-unit
Video signal in
NTSC
Guide lines
Static + Movable (IPAS)
Parking Sensor Display
Picture in Picture (PIP)
R-gear select
Lamp & CAN

A3 (8V) Facelift

2017-2020

Note: Rear select via CAN only with auto gearbox
Head-unit
MMI Radio plus/MIB Entry & plus/MIB std (5.8" & 7.0")
APPplay control
Oem MMI
All in one APPplay
Audio APPplay
Bluetooth / AUX
Rear camera input
Front camera input
Activation
Switch & OEM Button
Open head-unit
Video signal in
NTSC
Guide lines
Static + Movable (IPAS)
Parking Sensor Display
Picture in Picture (PIP)
R-gear select
Lamp & CAN

Extra Information

COMPATIBILITY

CAR

This kit is compatible with the following models:

Audi

REQUIREMENT

AUDIO OUTPUT	The interface inserts ONLY video signals into the infotainment. It is essential to have an Aux-in, when using audio from the CARplay box
VIDEO OUTPUT	Video goes via RGB
CONTROL	You can control CARplay & Android AUTO via original touch screen
SCREEN	Only compatible with MIB High resolution (5.8” & 7.0”)
OPEN HU	Not need to open the monitor
FRONT CAMERA	The front camera input will automatically switch after leaving the reverse gear. You can set the display time in seconds via the OSD menu (1-15 sec). It is also possible to select the FRONT camera input manually
OEM REAR CAMERA	The interface does switch back automatically to the OEM rear camera input when the reverse gear is engaged.
GUIDELINES	iPAS & Static lines are available via the interface OSD menu
iPAS	iPAS option is available (moveable grid lines)
PIP	PiP option is not available (Picture in Picture)
REAR SELECT CAMERA INPUT	Interface will respond on CAN for cars with auto gearbox. When manual gear box please use the rear detection wire.
INSTALLATION	We recommend that the installation will be performed by a qualified specialist

MEDIA PLAYER

Media player support the following files:

MUSIC	MP3
VIDEO	MP4

MEDIA PLAYER

Media player support the following files:

MUSIC	MP3
VIDEO	MP4

ANDROID AUTO

Your Phone must be compatible with Android AUTO & Androi Auto app must be available in your county.

An Android phone running Android 5.0 (Lollipop) and up with a data plan. For best performance, we recommend Android 6.0 (Marshmallow) and up. You can check your phone’s software version by looking at the About Device section under Settings

Please check the following link for more info about Android Auto:

LINK

Apps you can use with Android Auto:

LINK

If your country is not supported (app is not available in Google Playstore) please see the following link how to get the App:

LINK

APPLE CARPLAY

Your Phone must be compatible with Apple Carplay.

Please check the following link for more info about Apple Carplay:

LINK

Packaging

PACKAGE CONTENTS
